Digital indicating controller ACS-13A
Compact, Space saving
11-segment LCD display
An easier viewing display PV color switchable
Standard console connector equipped
Standard Output rate of change limit
Multi-input ºC
High-speed sampling
Multiple options
    Set value memory external selection
    Serial communication
    Heater burnout alarm output
    Heating/Cooling control output

Standard Features:

  • Compact, Space saving
  • 1/16 DIN 48 x 48 x 62mm (WxHxD)

The shortest depth of panel interior 56mm will contribute to space saving in the control panel area.
When gasket (Dust-proof, Drip-proof, IP66) is used, the depth will be 54.5mm

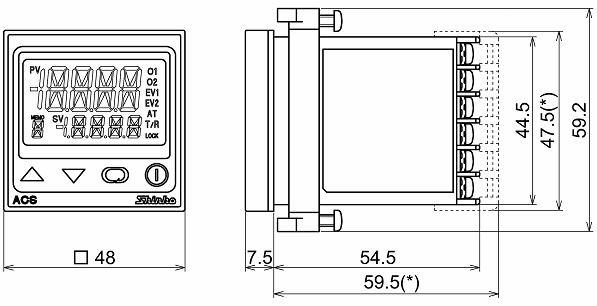

External dimensions (Unit: mm)

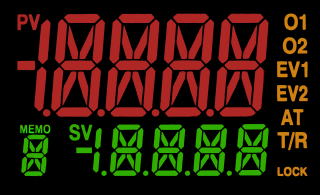

11-segment LCD adapted
As 11-segment LCD is used, it is much easier to read.
(Note) All segments are backlit for purposes of explanation. Actual indication is different from the one above.

Indication examples
Input type selection [SENS] Alarm 1 Energized/Deenergized selection [A1LM]

Alphabetical characters

Alphabet A B C D E F G H I J K L M N O P Q R S T U V W X Y Z

An easier viewing display, PV color selectable
The PV display color can be selected from red, green and orange
The PV display color can also change continuously depending on deviation between PV and SV,
this allows easy and distinct checking of control status.

Hys: Set point of PV color range

PV is lower than SV-Hys
PV is within SV}Hys
PV is higher than SV+Hys

Console connector is equipped (standard)

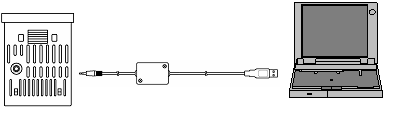

By connecting to a PC with USB port, various settings and monitoring can be conducted using
the Console software (SWS-ACS01M)

USB communication cable (CMA)

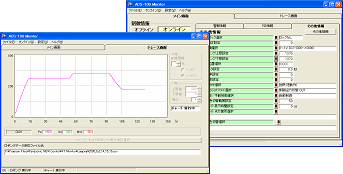

Console software (SWS-ACS01M)

Output rate of change limit function (standard)
This is suitable for heaters which are not designed for sudden changes in output.
This is suited for controlling heaters such as the Kanthal Super.

Multi-input, High-speed sampling
18 types of input such as thermocouple (10 types), RTD (2 types), DC current (2 types) and DC voltage (4 types) are available. The ACS-13A can perform temperature control for various machines such as injection
molders, extruders, packagers, bag makers, dryers and electric furnaces. A fast 0.25 second sampling period allows applications for various processes.

Multiple options
<Set value memory external selection>
SV1 to SV4 can be selected by external contact.
Control output OUT/OFF function or Auto/Manual control function is selectable.

<Serial communication>
Shinko protocol, Modbus ASCII and Modbus RTU can be used.

<Heater burnout alarm output>
Single phase or 3-phase heater burnout or deteoration can be detected.
For 3-phase, 2 pieces of CT are connected.

<Heating/Cooling contol output>
One cooling action is selectable from: Air cooling (linear characteristic), oil cooling (1.5th
power of the linear characteristic), water cooling (2nd power of the linear characteristic).

For cooling output type, relay contact or non-contact voltage output are usable.

All Digital Indicating Controllers features
a full 3 year warranty and lifetime technical support!

Download: ACS Series Brochure
Download: ACS Series Instruction Manual
Download: ACS Series Communication Manual
